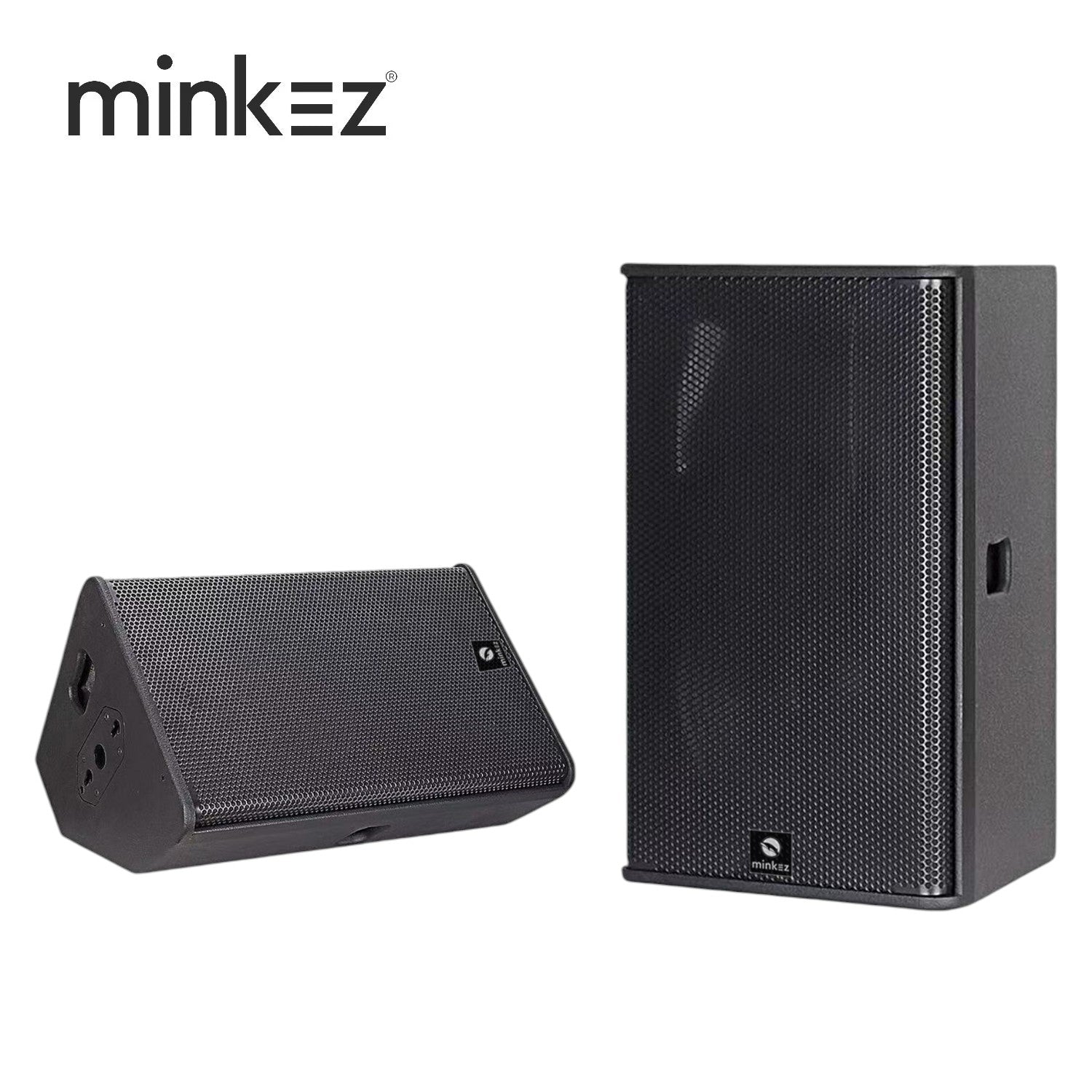

Minkez PA-M12 12" 1600W Passive Speaker
Minkez PA-M12 12" 1600W Passive Speaker
PA-M12 Passive Loudspeaker – Professional Live Sound Speaker
The PA-M12 Passive Speaker is a high-performance 12-inch professional loudspeaker designed for live sound reinforcement, delivering powerful output, clear vocals, and reliable performance in demanding environments. Ideal for bands, DJs, houses of worship, event venues, clubs, and portable PA systems, the PA-M12 combines compact size with high SPL and accurate sound reproduction.
Product Description
-
Professional Live Sound Speaker
Equipped with a 12” low-frequency driver and a 1.75” high-frequency compression driver, the PA-M12 produces a balanced and punchy sound with excellent vocal clarity and controlled bass response. With a maximum SPL of 122 dB and 400W nominal power handling, it is capable of covering medium to large spaces with ease.
-
Durable Float-paint Finish
The rugged enclosure features a durable float-paint finish, making it suitable for touring and fixed installations. Multiple mounting options allow the PA-M12 to be used as a main PA speaker, floor monitor, or flown speaker in vertical or horizontal configurations. Dual NL4 Speakon connectors ensure secure and professional signal connectivity.
-
Key Features & Specifications
- 12-inch passive PA speaker for live sound
- 1 × 12” LF driver + 1 × 1.75” HF compression driver
- 400W nominal power / 800–1600W peak power
- Maximum SPL: 122 dB
- Frequency response: 70 Hz – 20 kHz (-10 dB)
- Sensitivity: 97.5 dB
- Impedance: 8 Ohms
- 2 × NL4 Speakon connectors
- Durable float-painted cabinet
- Compact size: 371 × 572 × 333 mm
- Suitable for live bands, DJs, churches, events, and installed sound systems
-
Ideal Applications
- Live music performances
- DJ and mobile sound systems
- Churches and worship halls
- Event and function rooms
- Clubs, bars, and small venues
- Stage monitoring and fill speakers
